What Is a modular matrix switcher? Understanding Its Features and Benefits
Modular Matrix Switcher: A Convenient and Practical Device
A modular matrix switcher is a convenient and practical device that helps you manage multiple HDMI input sources and connect them to one or more HDMI output devices. In this article, we will provide a detailed introduction to the functions, performance, technical parameters, specifications, installation, debugging, and setup of modular matrix switchers.
Functionality
The main functions of a modular matrix switcher include input source selection, output signal distribution, and signal conversion. Through the modular card method, you can easily switch input signal sources and distribute them to one or more HDMI output devices. Additionally, the modular matrix switcher can convert signals of different resolutions and audio formats to meet compatibility requirements between different devices.
Performance Evaluation
The performance of a modular matrix switcher depends on several factors, including maximum resolution, maximum frame rate, audio format support, and the number of input/output ports. Typically, modular matrix switchers support resolutions ranging from 1080p to 4K, with frame rates ranging from 30Hz to 60Hz. They also support various audio formats, such as LPCM, Dolby Digital, and DTS. Furthermore, modular matrix switchers can have varying numbers of input and output ports to meet different needs.
Technical Parameters
The technical parameters of a modular matrix switcher include input/output port types, input/output resolution, audio format support, and input/output bandwidth. For example, a modular matrix switcher may have 4 HDMI input ports and 4 HDMI output ports, supporting 4K resolution at 60Hz frame rate, as well as multiple audio formats.
Specifications and Varieties
Modular matrix switchers come in a wide range of specifications, including different numbers of input/output ports, support for various resolutions and audio formats, and different types and quantities of modular cards. You can choose the modular matrix switcher that best suits your specific needs.
Installation, Debugging, and Setup
The installation, debugging, and setup process for a modular matrix switcher is similar to that of other HDMI matrices. First, you need to connect the HDMI input sources and output devices to the input and output ports of the modular matrix switcher. Then, insert the modular cards into the corresponding slots to connect the input and output ports. Next, you can use the remote control or front panel buttons to switch input signal sources and distribute them to the output devices. You can also make adjustments in the menu, such as resolution, audio format, and color space.
In terms of debugging and setup, modular matrix switchers typically offer both automatic and manual adjustment modes. In automatic adjustment mode, the modular matrix switcher can automatically detect the resolution and audio format of the input signal source and convert it to a format suitable for the output device. In manual adjustment mode, you can manually adjust the resolution, audio format, and color space of the input signal source to meet compatibility requirements between different devices.
Conclusion
A modular matrix switcher is a convenient and practical device that helps you manage multiple HDMI input sources and connect them to one or more HDMI output devices. It has unique features in terms of functionality, performance, technical parameters, specifications, installation, debugging, and setup. By selecting a modular matrix switcher that meets your needs, you can easily manage and control multiple input signal sources and distribute them to output devices, enhancing your entertainment and work efficiency.
Introducing Kensence's New Stackable Matrix: MCS-ANY-16
The MCS-ANY-16 is Kensence's latest stackable and visualizable high-definition matrix, designed to revolutionize large-scale audio and video signal transmission, processing, and sharing. Featuring a modular, asymmetric design, this cutting-edge matrix supports rapid, seamless switching and delivers a maximum resolution of 4K@30Hz. Its stackable architecture allows multiple matrices to be interconnected via fiber optic or network connections, enabling easy expansion to meet the demands of large-scale, cross-regional applications.
Key Features:
Modular and Scalable Design
The MCS-ANY-16 offers customizable input and output configurations, providing unmatched flexibility and scalability to adapt to various project requirements.Stackable for Expansion

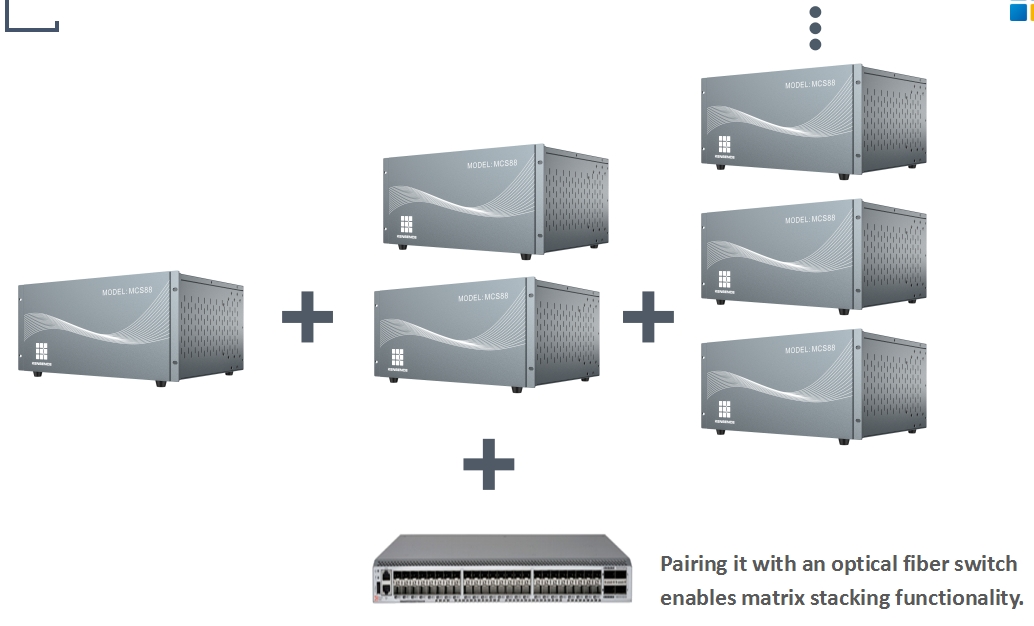

By connecting multiple matrices through fiber optic or network interfaces, the system can be easily expanded to handle larger and more complex setups.Visualized Real-Time Preview
With its advanced visualization capabilities, the matrix allows users to preview signals in real time, ensuring "what you see is what you get" (WYSIWYG) for seamless operation.High Performance
Supporting resolutions up to 4K@30Hz, the MCS-ANY-16 ensures crystal-clear video quality, making it ideal for high-definition applications.
Wide Range of Applications
This versatile matrix is perfect for a variety of scenarios, including:
Broadcast and television engineering
Multimedia conference rooms
Command and control centers
Smart education and training environments
