Any Input and Output Seamless 4k Video Stackable matrix switcher

Product Overview

The MCS-ANY-16 matrix switcher system is a new type of high-definition matrix that realizes large-scale, cross-region audio and video signal transmission, processing and sharing. The number of matrix can increased on the basis of individual matrices to achieve the purpose of capacity expansion, and the matrix can define the number of inputs and outputs, which is highly scalable.

At first , the asymmetric design of the MCS-ANY-16 matrix switcher system allows for any combination and distribution of inputs and outputs without the need to specify the concept of inputs and outputs, thus conforming to the user's needs and improving flexibility of use. Secondly, the stacking visualization HDMI over IP matrix switcher also breaks the port limitation of traditional matrix. The number of ports of traditional matrices are limited, making it difficult to meet the needs of users, while the stacked matrix allows unlimited expansion through the fiber or network so that users can freely expand according to demand, improving scalability and convenience. Finally, the stacked visual HDMI over IP matrix to achieve preview,what you see is what you get. The traditional modular matrix doesn’t support the live preview of source and display. The user needs to preview through other devices, which it is very inconvenient, and the stacked HDMI over IP matrix can preview sources and displays through the preview function, greatly improving the convenience of use and user experience. The product can be widely used in broadcasting and television projects, multimedia conference halls, command centers, intelligent teaching, and other occasions.

Features

• Has 16 -channel of video ports, which can be configured to input or output any combination of 16 channels.

• Single-card and single-channel design for flexible configuration and maintenance; > Built-in intelligent card with recognition technology for automatic detection of card type, plug-and-play;

• Supports input signals: HDMI, DVI, up to 4K@30Hz resolution

• Supports otuput signals: HDMI, DVI, up to 4K@30Hz resolution

• Supports quad screen and the live preview of source and display

• Adopting the technology of seamless switching, no black screen, blue screen, tearing or flickering during switching

• Supports EDID management compatible with HDCP protocol

• Supports caption

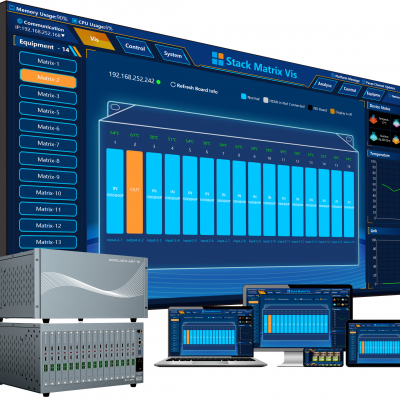

• Has visualization software, What You See Is What You Get: The system provides a unique visualization control APP, which integrates audio, video, and control, and provides comprehensive control over signals, scenes, and usage, making it easy to manage audio and video control at command and control centers, large-scale conference centers, and other applications.

• Has multiple peripheral interfaces, including RS232, IO, network, and optical fiber

• Supports the stacking of multiple matrices through LAN port or fiber port

Signal Card

Model:MC-IN

• Supports EDID reading and calling

• Supports HDMI 1.3 and HDCP protocol

• Supports up to 1080P@60Hz of video resolution

• Support RS232 signal transparent transmission for controlling external devices

Model:MC-OUT

• Supports audio de-embedding


• Supports quad screen;Supports EDID reading and calling

• Supports HDMI 1.3 and HDCP protocol

• Supports up to 1080P@60Hz of video resolution

• Support RS232 signal transparent transmission for controlling external devices

Model:MC-DUPLEXS

• Has 1 x HDMI input, 1 x HDMI output, 1 x audio input, 1 x audio output, 1 x LAN port, 1 x RS232, 1 x IR/IO multiplexing

• Supports maximum resolution 3840X2160@30 (backward compatible with standard resolution)

• Input mode with more than 16 video distribution capabilities; output mode supports four-screen split

• It can be set as input card or output card by dip switch.
