Product Introduction

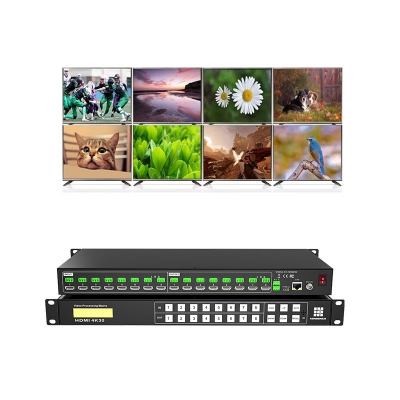

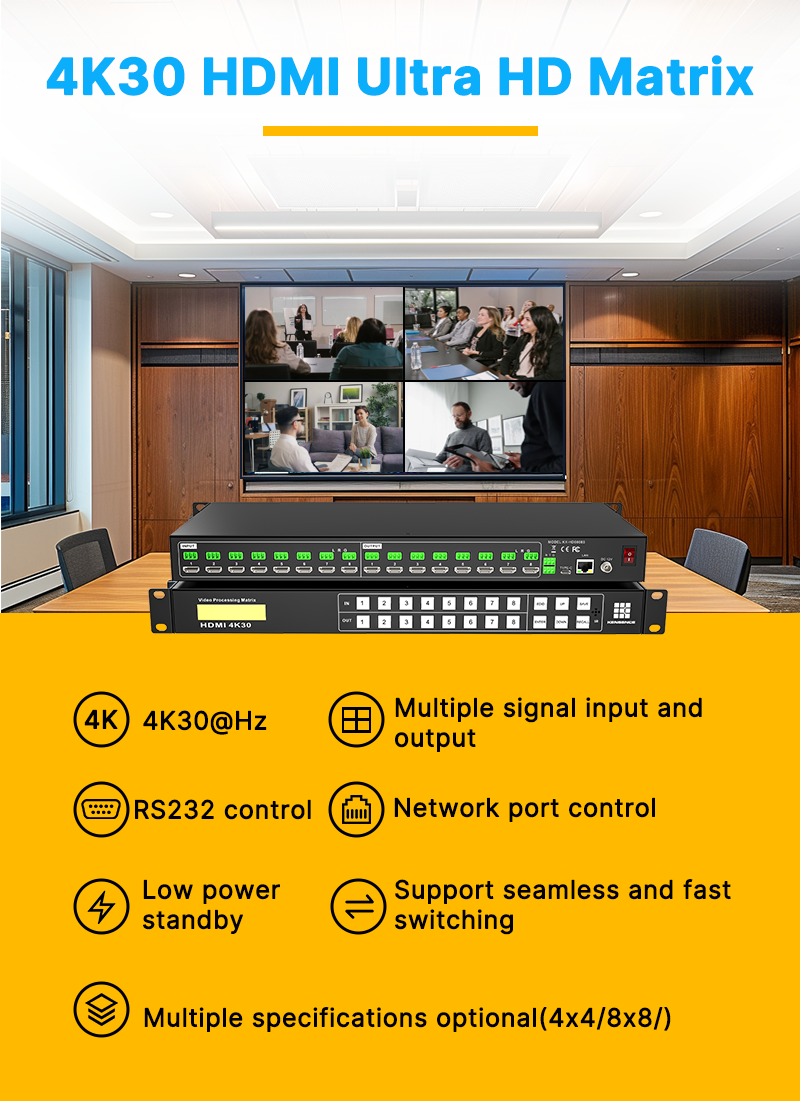

The Seamless 4x4 and 8x8 HDMI Matrix Switches support a maximum resolution of 4K@30Hz, as well as compatibility with 3D video, HDCP 1.4 certification, and a color depth of 16 bits. The model specifications include KX-HD0404S and KX-HD0808S, ensuring users experience a lossless frame rate and a delay-free, crystal-clear full digital display. It offers multiple control interfaces, including RS232, TCP/IP, to accommodate various customer control requirements.
Application Scope: These devices are ideal for digital video multi-screen display systems, visual command and dispatch operations, safe city initiatives, medical education, satellite mapping, video conferencing, video surveillance, and other applications that demand high-quality digital video presentation.
Seamless HDMI Matrix Switch Product indicators

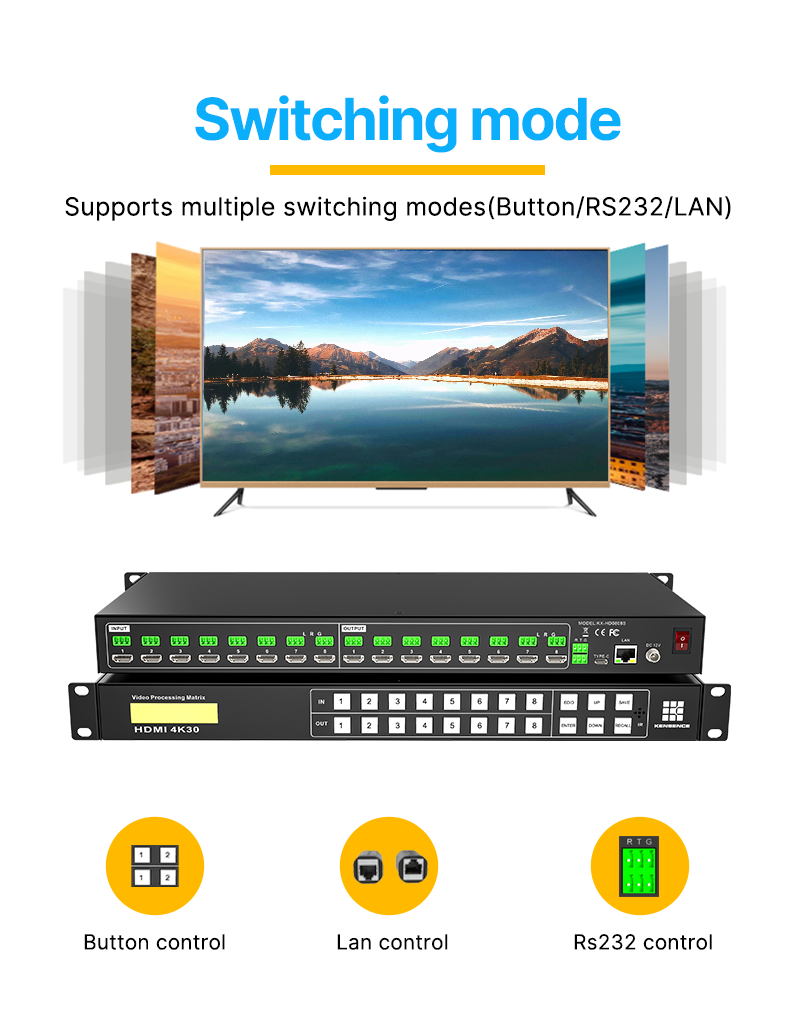

> Support panel buttons, IR infrared, RS232 commands and TCP/IP network port control;
> Supports resolution up to 4K x 2K@ 30 Hz and 1080P 3D;
> With intelligent EDID management function, the built-in EDID can be called through the dip switch, RS232 command, and Web Gui;
> Integrate multiple control protocols, conveniently and quickly used with various central control devices;
> Can provide remote support for engineering sites and customization of user-specific functions;
> Fast ultra-high definition full digital switching;
> Support USB firmware online upgrade;
> Support LCD or LED screen to display system status in real time;
> Support HDMI 1.4 , compatible with HDCP2.0 protocol and backward compatible;
> Transmit 4Kx2K@ 30 Hz 4:4:4, signal transmission ≥5 meters;
> Support input HDCP following, output supports HDCP management, command control;
> Powerful storage function, can store and call multiple pre-stored switching modes; has power-off memory function, with power-off site protection function;
Specifications
Model | KX-HD0808S | KX-HD0404S |
Specification | Input/output supports 8 channels | Input/output supports 4 channels |
Name | Ultra-HD matrix splicing and control all-in-one machine | |
Input signal | Full digital HDMI signal + 8/4-channel 3.5mm audio signal | |
Output signal | Full digital HDMI signal + 8/4-channel 3.5mm audio signal | |
Supported resolution | The highest resolution can reach 4K@30Hz (3840*2160), backward compatible | |
HDMI Version | HDMI 1.4, supports 3D TV | |
Digital Content Protection | HDMI 1.4, supports 3D TV | |
Hot Swap | Plug and play, easy to install, supports hot swap | |
Input line length | Built-in equalizer at input end, up to 30 meters away | |
Output line length | ≤15m | |
Input and output ports | HDMI port Type A 19-pin female | |
External power supply | 110~220 VAC | |
Work Environment | Storage and use temperature: -20°~+70°C; humidity: 10%~90% | |
Product Weight | 4.3KG | |
Rated Power | 22W | |
Size (WxDxH) | 1U (480mmx370mmx44mm) | |
Application Example
We are excited to announce our latest addition to the product lineup—the KX-HD0404 and KX-HD0808S Matrix Switches! These cost-effective solutions are perfect for anyone searching for affordable yet high-performance HDMI matrix switches.
If you are looking for a budget-friendly option that doesn’t compromise on quality, look no further! Our matrix switches support up to 4K@30Hz resolution, and a variety of control interfaces, making them an ideal choice for diverse applications.
For more information or to discuss how our KX-HD0404/0808S Matrix Switch can meet your needs, please feel free to contact us. We're here to help you find the perfect solution!
