Wholesale 6x6 Seamless 4k30 16 Channel Hdmi Matrix Over Ip 8x8 Matrix Switcher with Preset Functions

Product Overview

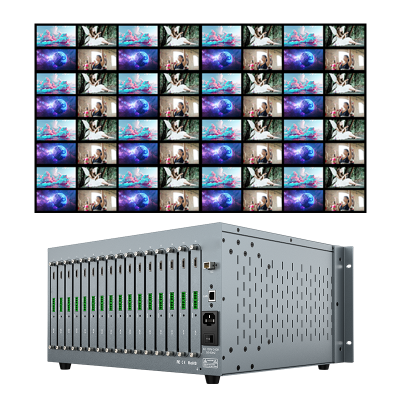

The MCS-ANY-16 video matrix switcher represents an advanced solution for high-definition audio and video signal transmission, processing, and sharing across large-scale and diverse environments. This system offers significant scalability, allowing users to expand the matrix capacity by adding additional individual matrices as needed. Moreover, it provides the flexibility to define the number of input and output ports according to specific requirements.

One of the standout features of the MCS-ANY-16 video matrix switcher is its asymmetric design, which enables users to create any combination and distribution of inputs and outputs without being restricted by traditional designations. This adaptability enhances user experience and operational flexibility significantly. Additionally, the innovative stacked visualization HDMI over IP matrix switcher overcomes the limitations of conventional matrices, which often have a fixed number of ports that can fall short of user demands. The stacked configuration allows for unlimited expansion via fiber or network connections, giving users the freedom to scale their systems according to their specific needs, thereby enhancing both scalability and overall convenience.

Furthermore, the stacked HDMI over IP matrix switcher incorporates a live preview feature, so users can see exactly what is being transmitted or displayed. In contrast, traditional modular matrices lack this capability, requiring users to rely on external devices for source and display previews, which is not only inconvenient but also complicates the workflow. The MCS-ANY-16 simplifies this process by enabling direct source and display previews, significantly enhancing the overall user experience.

This HDMI Matrix with app Control product is ideal for a broad range of applications, including broadcasting and television projects, multimedia conference rooms, command centers, intelligent teaching environments, and more.

Features

• Has 16 -channel of video ports, which can be configured to input or output any combination of 16 channels.

• Single-card and single-channel design for flexible configuration and maintenance; > Built-in intelligent card with recognition technology for automatic detection of card type, plug-and-play;




• Supports input signals: HDMI, DVI, up to 4K@30Hz resolution

• Supports otuput signals: HDMI, DVI, up to 4K@30Hz resolution

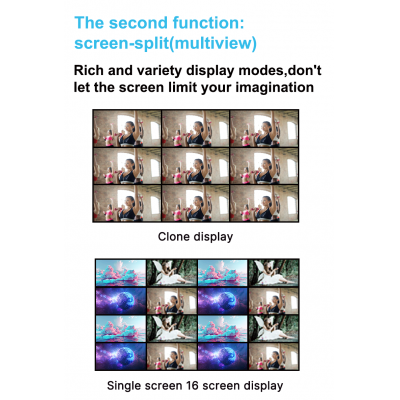

• Supports quad screen and the live preview of source and display

• Adopting the technology of seamless switching, no black screen, blue screen, tearing or flickering during switching

• Supports EDID management compatible with HDCP protocol

• Supports caption

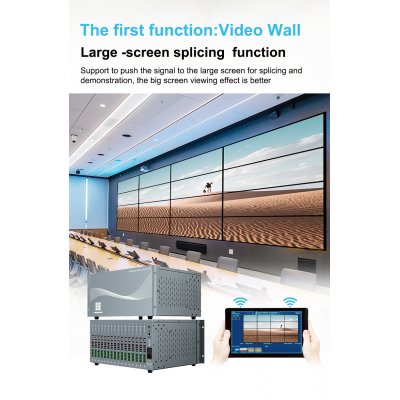

• Has visualization software, What You See Is What You Get: The system provides a unique visualization control APP, which integrates audio, video, and control, and provides comprehensive control over signals, scenes, and usage, making it easy to manage audio and video control at command and control centers, large-scale conference centers, and other applications.

• Has multiple peripheral interfaces, including RS232, IO, network, and optical fiber

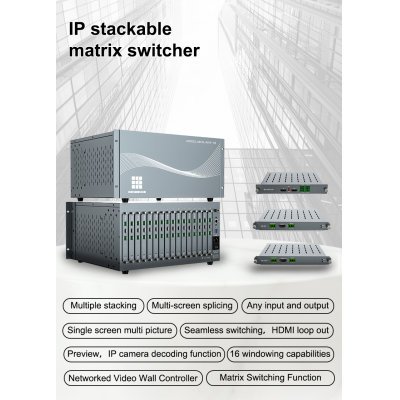

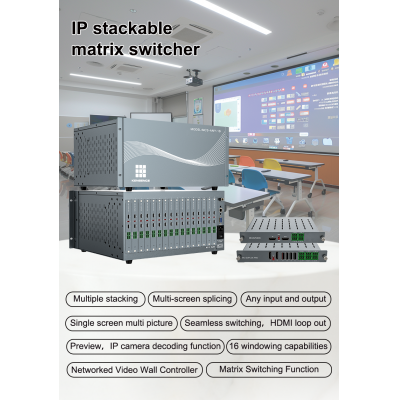

• Supports the stacking of multiple matrices through LAN port or fiber port

Signal Card

Model:MC-IN

• Supports EDID reading and calling

• Supports HDMI 1.3 and HDCP protocol

• Supports up to 1080P@60Hz of video resolution

• Support RS232 signal transparent transmission for controlling external devices

Model:MC-OUT

• Supports audio de-embedding


• Supports quad screen;Supports EDID reading and calling

• Supports HDMI 1.3 and HDCP protocol

• Supports up to 1080P@60Hz of video resolution

• Support RS232 signal transparent transmission for controlling external devices

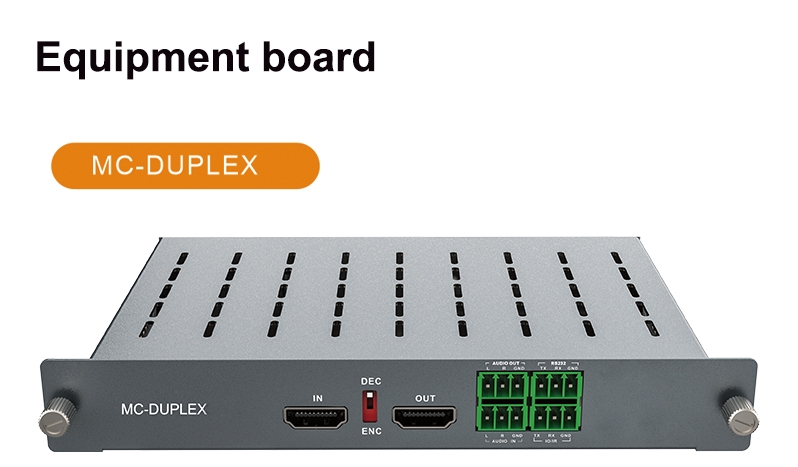

Model:MC-DUPLEXS

• Has 1 x HDMI input, 1 x HDMI output, 1 x audio input, 1 x audio output, 1 x LAN port, 1 x RS232, 1 x IR/IO multiplexing

• Supports maximum resolution 3840X2160@30 (backward compatible with standard resolution)

• Input mode with more than 16 video distribution capabilities; output mode supports four-screen split

• It can be set as input card or output card by dip switch.

Parameters

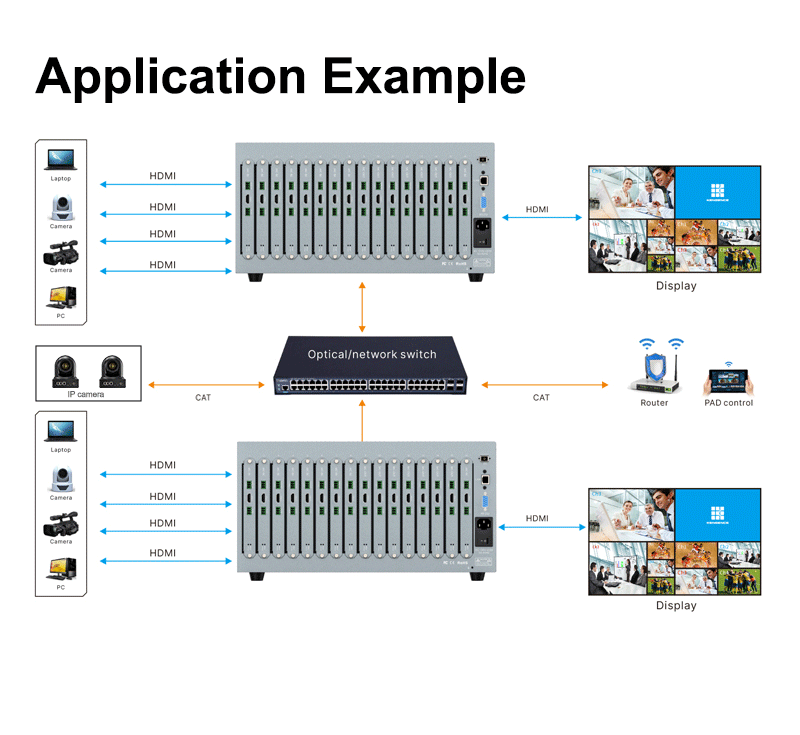

Application Example
