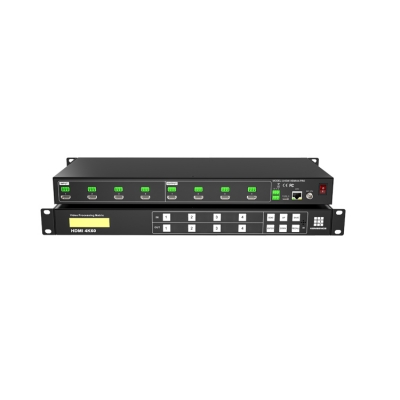

UHDW-HDMI44/88-PRO Seamless Hdmi matrix is a versatile Ultra HD matrix switcher with integrated video wall capabilities, combining matrix switching functionality with support for 4-screen/8-screen mosaic display. Designed specifically for ultra-high-definition video systems, it delivers high-performance, high-bandwidth intelligent signal switching and distribution.
UHDW-HDMI44/88-PRO matrix switcher Features
Supports 4/8-channel Pho-enixterminal audio interface
Supports 4:4:4 chroma subsampling
4/8-channel HDMI signal input/output

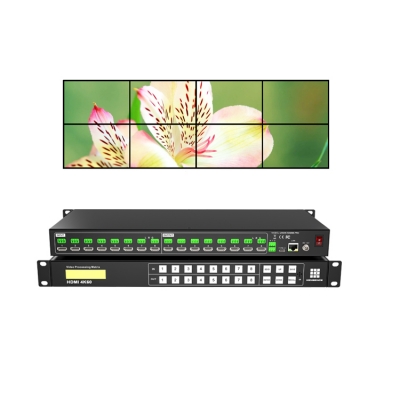

Large screen mosaic display capability
Multiple control methods: panel buttons, IR remote, RS232 commands, TCP/IP network port
Supports resolutions up to 4Kx2K@60Hz and 1080P 3D
Output resolution adjustable via EDID selection button
Integrated multiple control protocols for easy integration with central control systems
Provides on-site remote support and custom function development
Powerful memory functions:
Stores and recalls multiple preset switching patterns
Power-off memory protection
Blackout recovery function
Ultra-fast seamless switching in super HD quality
Firmware upgrade via Type-C interface
Real-time system status display on LCD/LED screens
HDMI 2.0 compliant with HDCP 2.2 (backward compatible)
Stable transmission of 4Kx2K@60Hz 4:4:4 signal (≥5 meters)
HDCP management:
Input HDCP following
Output HDCP control via commands
Technical parameter

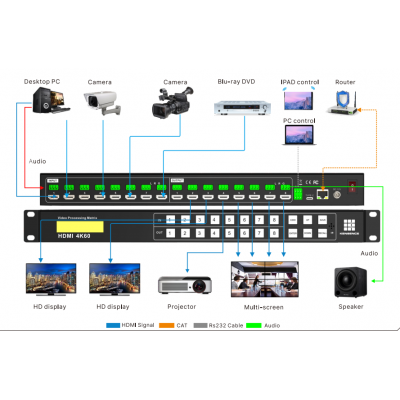

Application Example
